Microcrystalline Zirconia Beads
• Microcrystalline Zirconia Beads offers a uniform bead size distribution and a low self-wear rate, so grinding results stay repeatable in cost-effective fine grinding of ceramic ink, inkjet pigment, coatings and mineral fillers.
• The beads are chemically inert and non-contaminating, so the purity of the milled material is preserved and batch-to-batch consistency stays stable over a long service life.
• Available in a range of sizes and to customer drawings; batch quantities and tooling can be arranged on request.
1. Characteristics and advantages of zirconia beads product materials.
• Microcrystalline Zirconia Beads offers a uniform bead size distribution and a low self-wear rate, so grinding results stay repeatable in cost-effective fine grinding of ceramic ink, inkjet pigment, coatings and mineral fillers.
A. Ultra-fine Grain Size: Higher fineness of raw materials, lower wear rate, longer service life.
B. Ultra-high Density: Ultra-dense inner structure, strong impact resistance, no broken beads during use.
C. Uniform Bead Size Distribution: More stable grinding, results more sustainable productions.
D. Smooth Surface: Lower self-wear rate.
2. Product process of Microcrystalline zirconia beads（Φ0.3-Φ5.0mm）
• It is made of high-purity Y-TZP raw materials, and high wear resistance.
• Good strength, no broken beads during use.
• It has good self-lubrication and less wear on equipment.
• Good sphericity.
3. Applications
• Microcrystalline zirconia beads（Φ0.3-Φ5.0mm）commonly used for ultrafine dispersion of various materials, such as new energy, electronic materials, paint coatings, ink graphite, cosmetics, food and medicine, etc.
4. Comprehensive parameters
|
Index |
ZR95 Nano Zirconia Beads |
ZR95 High-purity Zirconia Beads |
|
(ZrO2)Zirconia Content |
94.5+0.2(%) |
94.5+0.5 (%) |
|
Density |
≥6.03g/cm³ |
≥6.0g/cm³ |
|
Pack Density |
3.75g/cm³ |
3.7g/cm³ |
|
Crushing Strength（Φ0.3mm） |
≥10Kgf |
≥9Kgf |
|
Sphericity |
>0.98Ds/Dl |
>0.95Ds/Dl |
|
Size tolerance rate |
≈0.5‰ |
≈1‰ |
|
Weared value |
<150ppm/h |
<200ppm/h |
|
Vickers Hardness |
≥1250HV |
≥1230HV |
|
Beads Size Range Available |
Φ0.05-Φ2.0mm |
Φ0.3-Φ5.0mm |

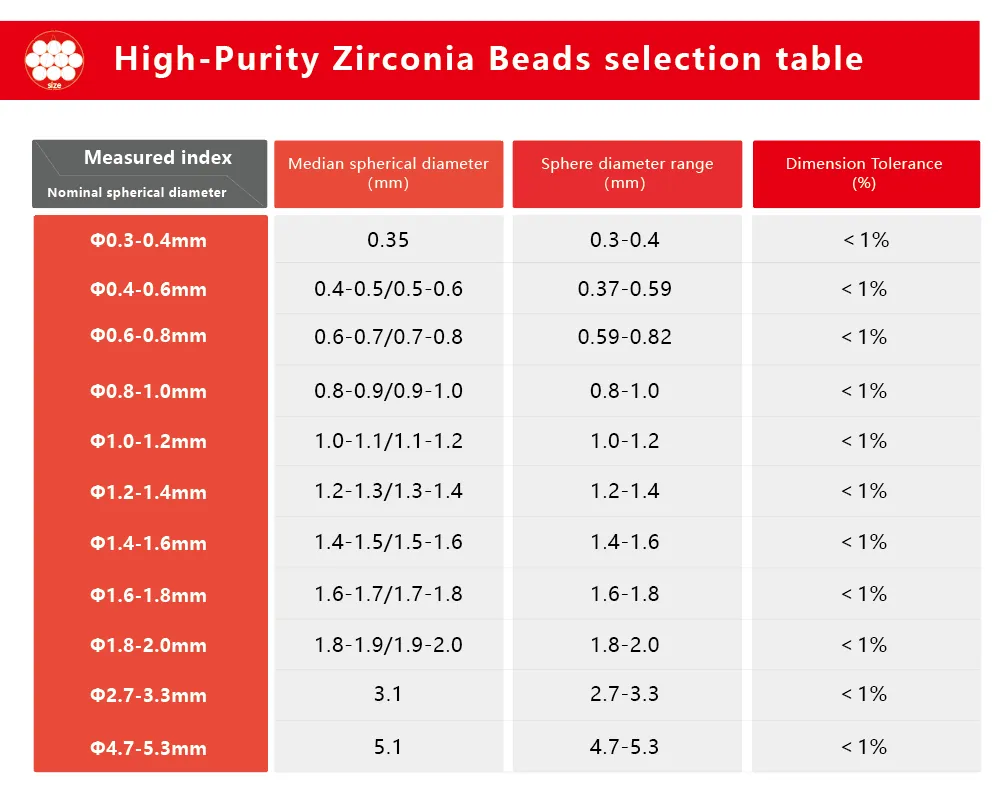

5. Microcrystalline Zirconia beads selection table
6. Zirconia beads production workshop
